Intermarine · 2001

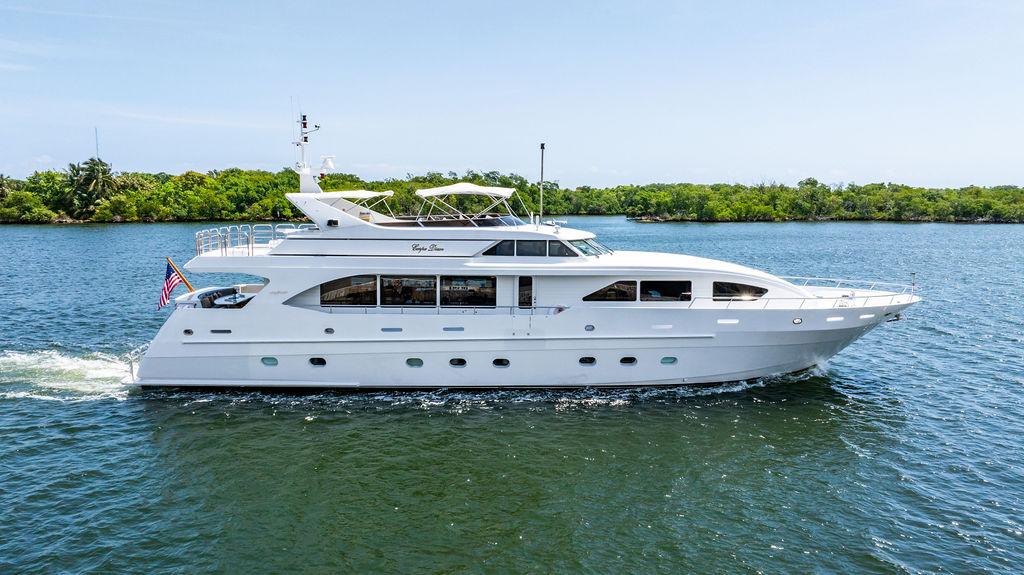

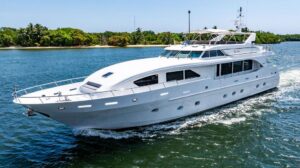

2001 Intermarine Raised Pilothouse

  • Miami, FL
  • 95.33 ft
  • 21.5 ft beam

Asking price$1,299,995Listing ref. 10309635

34 photos

Quick specifications

Year
2001
Length overall
95.33 ft
Beam
21.5 ft
Draft
5.5 ft
Cabins
5
Heads
5
Engines
2 × MTU 12V2000 M90
Location
Miami, FL

Overview

Description provided by the listing broker, Merle Wood & Associates.

MOTIVATED SELLER - BRING OFFERSCARPE DIEM KEY FEATURES: Constructed to meet ABS class standards Freshly renovated main salon featuring new carpet and soft furnishings Installation of a new Jacuzzi on sun deck Complete upgrade with all-new Garmin GPS systems Audio and video equipment replaced in 2024 All running gear rebuilt or replaced 2024 $80,000

CONSTRUCTIONFiberglass hull and superstructure, teak deck

DIMENSIONSGeneralLength Overall (L. O. A.): 95.33 feet (29.05 meters)Beam (molded): 21.50 feet (  6.55 meters)Draft (loaded):   5.67 feet (  1.73 meters)Tonnage: 166 grossDisplacement:  255,000 lbsCapacitiesFuel Capacity: 4,100 US Gallons (15,520 liters)Water Capacity: 1,000 US Gallons (  3,785 liters)Grey Water:     375  US Gallons ( 1,419 liters)Black Water:     400 US Gallons ( 1,514 liters)  Speed  Maximum: 18.0 knots Consumption: 125 US Gallons /hr   Range: 580 nm  RPM: 2,100 Cruising: 15.0 knots   Consumption: 80 US Gallons /hr   Range: 800 nm RPM: 1,900 Economical: 12.0 knots   Consumption: 50 US Gallons /hr Range: 1,000 nm RPM: 1,500

MACHINERYMain EnginesEngine Type: (2) MTU 12V 2000 M90 @ 1,350 Hp eachDrive: Direct drive 5 blade Nibral Ratio: 2.48:1    Generators & ElectricityOutput: 45kWGenerators: (2) Northern Lights M4450- 45 KwShore Power: 120/240 volts / 187 Max Amps (2) GlendinningBatteries: (4) 6 volt Deka (NEW) (2) 12 volt 4D lead acid (4) 24 volt belt driven alternators Sentry 24 colt, 60 Amp + 24 volt / 40 amp & Sentry 24 volt 30 amp (1) NEW Battery charterAir ConditioningType: (2) Aqua Air 144,000 BtuOther MachineryWatermakers: FCI NEW MEMBRANES AND TOTAL REBUILDTrim Tabs/Stabilizers: Yes REBUILD AND NEW HOSESBow Thruster: Naiad, hydraulic REBUILDSteering System: Jastram Hydraulic REBUILD AND NEW HOSESFuel Separator & Filtration: Detroit Diesel Sea Pro 300Sewage System: HeadhunterFresh Water System: (2) Headhunter Mach 5 115 volt REBUILD

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMSCommunication Systems SATcom: InmarsatSSB: SEA 234 radio with remove micVHF: (2) Icom IC-605   Navigation SystemsRadar: Furuno 96 mileMagnetic Compass: 5” Ritchie magnetic compassAuto Pilot: (2) Simrad ASP20 (upper and lower helm)Depth Sounder: Data marine multi-link digitalGPS: (3) Garmin GPS Map 8616 (1) Garmin AIS 800 (1) Airmar B744VL-8GChart Plotter: RaymarineWind/Speed Log: Datamarine multi-linkNavtex: (2) Raymarine G Series (upper and lower helm) Furuno Navtex NX-500  Entertainment System: Video Equipment All new Samsun TVs with Bose 900 sound bars (4) Garmin cameras GC 200 Audio Equipment (3) Panasonic Stereo (3) Fusion MS-RA770 with JL Audio speakers Sony soundbar Wi-Fi Equipment Starlink w/ 6 wireless access points Mikok router (2) Pepwave20G

GALLEY & LAUNDRY EQUIPMENTMain Galley EquipmentCooking Equipment: 5 burner electric stovetop Whirlpool oven GE microwaveRefrigeration/Freezer: SamsungDishwasher: Maytag  Additional Galley EquipmentCooking Equipment: (2) Icemaker (Salon & Aft deck) Jenn-Air dual burner (flybridge)Refrigeration/Freezer: Avanti refrigerator (captain’s cabin) Sub-Zero refrigerator (flybridge) Premium chest freezer (flybridge)Other: GE trash compactor  Laundry EquipmentMain Laundry Equipment: Electrolux

TENDERS & TOYSTenders: Novurania 460 Honda 90 Hp

DECK EQUIPMENTAnchor Windlass System:  Maxwell 4500 24 volt w/ wild cat & capstan drumAnchors: Fortress FX125 with approx. 300’ of chain Fortress FX85Anchor Chain: Approx. 300’ of chain Boat Crane and Davits: Marquipt Hydraulic 1,500 lbs. Swimming Platform: Fiberglass with non-skid Courtesy lights at steps Stainless steel handrails at steps Pantograph centerline engine room door (7) removable stainless steel hoop rails Back-lit stainless steel boat name (2) 100 amp Glendinning cord inlets Shore water hook-up Ring camera at engine room entranceUnderwater Lights: (4) Lumitec

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENTSecurity EquipmentCCTV System: (3) Aft deckCameras: Ring Camera  Fire Fighting EquipmentFire Control System: Kiddle Clean Agent FM-200Fire Extinguishers: (6) Type B:C size I (5) Type B:C size II (2) Co2  Safety EquipmentLife Rafts: (2) Duarry 12-persion (new)Life Rings: (2) USCG approved EPIRBS: ARC Global FixFlares: (4) Red Handheld (4) Cartridges + gunHorns: Dual Kahlenberg

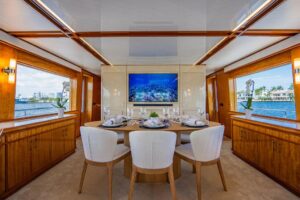

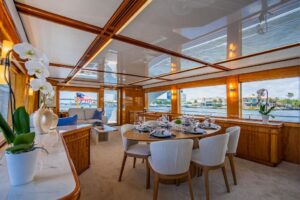

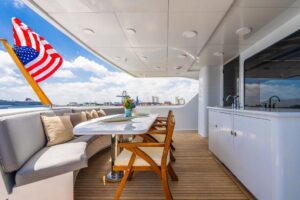

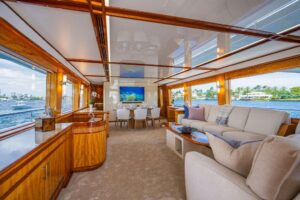

ACCOMMODATIONSBoarding from a fixed dock is possible via the midship Marquipt Tide Ride ladder on either the port or starboard side. If boarding from a floating dock, access is available to the swim platform, with steps leading up to the aft deck. The aft deck features both loose and fixed seating, protected by a full boat deck overhang. A bar with a sink, fridge, and icemaker is located forward. Offset to the port side is the hinged tinted glass door leading to the salon, which offers ample natural light through its large side windows. To the port side, there's a walk-behind bar, while to the starboard side, there's a white leather sectional with a coffee table in front. A four-place dining table is situated forward, accompanied by a 55” TV on the forward bulkhead. The accommodations foyer is located to the port side, while the pilothouse, galley, and crew area are to starboard. Moving forward on the starboard side, you'll find the day head, steps leading to the pilothouse, and a spacious country kitchen with updated appliances, stone countertops, and a large dining table forward. Curved steps to starboard lead to the crew area, with the ensuite double cabin to port often used for guests, featuring a queen-size berth and a private head with a stall shower. In the Vee, there's a crew cabin with upper and lower berths and a private head with a stall shower. Descending curved steps from the port side of the salon, you'll find the master cabin forward, featuring a centerline queen berth and his-and-her heads separated by a large tub/shower. Aft from the centered foyer with a second laundry area are two guest cabins: one to the port side with an athwartships queen bed and a private head, and the other to the starboard side with twin berths and a private head. The spacious flybridge is accessible via the pilothouse and offers a bar, dining area, starboard-side helm, and the tender located aft.

REFIT SUMMARY2024 NEW EQUIPMENT: CALIFORNIA AIR COMPRESSOR (2) NEW LIFE RAFTS 12 PERSON NEW GENERATOR STARTERS MAIN ELECTRICAL PANEL 24 VOLT BREAKERS HYDRAULIC HOSES THROUGHOUT THE BOAT BATTERY CHARGER ALL NEW BATTERIES GALLEY AC SYSTEM CAPT. CABIN AC SYSTEM ANODES ANTIFOUL PAINT (2) NEW ICE MAKERS ALL NEW ENTERTAINMENT SYSTEM ALL NEW NAVIGATION SYSTEM ALL NEW COMMUNICATION SYSTEM ALL NEW CCTV SYSTEM ALL NEW LED LIGHTS INTERIOR AND EXTERIOR NEW ANCHOR JACUZZI AQUA BANA, PARTY BANA NEW HEADLINER THROUGHOUT NEW MAIN SALON!!! ALL NEW BEDDING UPPER DECK NEW PAINT STERN, NEW PAINT NEW TEAK STAIRS NEW CARPET THROUGHOUT NEW GALLEY FLOOR SHAFT SEALS NEW STABILIZER SEALS AND HOSES NEW AFT DECK TEAK CHAIRS (2) NEW CIRCULATION PUMPS2024 REBUILD EQUIPMENT: ALL THE RUNNING GEAR THRUSTER STABILIZER STEERING WATERMAKER ENGINE ROOM VENTILATION UNDERWATER LIGHTS AIR HANDLERS THROUGHOUT LOTS OF CARPENTRYSUMMER 2023: 24 new injectors 24 rebuilt EVP’s (Injector pumps) Adjusted valve lash and replaced valve cover gaskets Replaced coolant and pressure tested system Cleaned, pressure tested and painted both, changed air coolers, installed with new seals, hoses and clamps Replaced starboard engine hydraulic exhaust flap and gasket Changed oil and oil filters Changed MTU primary fuel filters

Fly Yachts is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Merle Wood & Associates.

Specifications

From the listing data. Fields the listing doesn't supply are not shown.

General

Builder
Intermarine
Model
Raised Pilothouse
Year
2001
Location
Miami, FL
Condition
Used
Length overall
95.33 ft
Beam
21.5 ft
Draft
5.5 ft

Engines and performance

Engines
2 × MTU 12V2000 M90

Accommodations and tankage

Cabins
5
Heads
5

Not specified in this listing: engine hours, cruising speed, top speed, range, hull material and fuel capacity. Ask a broker to confirm.
