Christensen · 2020

2020 Christensen Model Year 2020

  • Ketchikan, AK
  • 164 ft
  • 29 ft beam

Asking price$39,500,000Listing ref. 7317800

33 photos

Quick specifications

Year
2020
Length overall
164 ft
Beam
29 ft
Draft
8 ft
Cabins
6
Heads
6
Engines
2 × MTU 12V4000 M53
Location
Ketchikan, AK

Overview

Description provided by the listing broker, Merle Wood & Associates.

This large-volume yacht features Christensen’s latest design and engineering unmatched by her predecessors. Her custom interior features accommodations for up to 16 guests in 6 staterooms with a voluminous master suite located on the main deck, complemented by a full-width VIP suite, and 4 equally impressive guest staterooms on the lower deck. World-class pedigree, fiberglass motor yacht with available delivery in the next 90 days! Fresh new wide-body design with classic interior Accommodations for up to 16 guests in 6 staterooms incl. on-deck master suite and full-width VIP on the lower deck Guest elevator provides unlimited access to all decks including the sun deck Dayhead on sun deck Helipad complete with fuel storage on sun deck Emergency generator  Bulbous bow MTU 12V4000 series main engines provide 14-knot cruising speed, and global cruising capabilities ABS classification

CONSTRUCTIONFiberglass hull and superstructure (Vacuum infused FRP-foam core sandwich composite), with teak decks

DIMENSIONSGeneral      Length Overall (L. O. A.):             164.00 feet                (49.90 meters)  Length at Waterline (L. W. L.):     145.50 feet                (44.30 meters)  Beam (molded):                           29.00 feet                (  8.80 meters)  Draft (loaded):                               8.00 feet                (  2.40 meters)   Tonnage:                                     499 gross tons                 Capacities      Fuel Capacity:                            16,500 US Gallons    (62,460 liters)  Water Capacity:                           3,600 US Gallons    (13,600 liters)  Lube Oil:                                         300 US Gallons    (  1,136 liters)  Waste Oil:                                       300 US Gallons    (  1,136 liters)    Speed    Maximum:                                  16.0 knots  Cruising:                                     14.0 knots

MACHINERYMain EnginesEngine Type:  (2) MTU 12V4000 diesels @ 1,810 Hp each Gearboxes for Main Engines:  (2) ZF Model 5055A, 8° down-angle, 3.04:1 ratio with trailing pumps and trolling valves   Propellers:  (2) VEEM - 5 Blades, NiBrAI, CNC machining Generators & ElectricityOutput:  208 Volts, 3 phase, 60Hz Generators:  (2) Kohler 99 KW / (1) Kohler 65 KW Main Switchboard:  Hyak Electroworks - Integrated shore power Conditioning & conversion system with full auto-paralleling control system. Converts any input voltage & frequency from shore power DC Electrical System:  (2) 24 VDC Battery Banks with battery chargers Air ConditioningType:  Christensen chilled water HVAC system with 40-ton Chiller with 45-Kw electric heater & Network interface Other MachineryWatermakers:  (2) FCI dual-pass systems, producing 20 PPM Purified water @ 2400 GPD, per unit Trim Tabs/Stabilizers:  Quantum QC-1800, with two (2) custom Stainless steel, high-lift, 4.5 m2 retractable/extending fins Bow Thruster:  ABT TRAC-24” dual-prop tunnel thruster with with 86-KW AC electric motor Steering System:  (2) Jastram electro-hydraulic power packs with Emergency manual help pump   Fuel Separator & Filtration:  (2) MTU Primary & Secondary filtration systems (3) Racor model 804MA30 filters for gensets (1) Fuel Filter/Water Separator, Henek Fluid System 30-GPM flow rate   Sewage System:  Tecnicomar, model “ECOmar 16”, IMO MEPC- 159(55) certified – treating both “black & gray” water systems Fresh Water System:  (2) FCI – 2400 GPD, per unit - Fresh Water RO System, with silver-iron and UV sterilizer Bilge Water Filtration:  Recovered Energy Inc., model BOSS2TY-107,USCG Certified, ABS Type Approved & IMO MEPC-07(49) compliant

COMMUNICATION, NAVIGATION AND ENTERTAINMENTCommunication SystemsSATcom:  Sailor 100   Telephone System:  Panasonic with 24 extension ports for Wired & wireless extensions with intercom & Paging capabilities VHF:  (3) Garmin 300 VHF Cellular Phone System:   (2) Telular SX5E GSM Cellular Phone Loud hailer:  (1) Garmin   Network Access:  Great Circle System NAS 3000 automatically Searches all network sources for the most cost-effective route for internet traffic Wireless Network:  Cisco 802.11g wireless network covering all decks Navigation Systems Radar:  (1) Furuno FAR2137BB, 30-KW, S-Band (1) Garmin 2526 X-Band, Garmin Fantom 6 (1) Garmin GMR Fantom 6    Magnetic Compass:  (1) Richie SY-600LL Super Yacht Compass Auto Pilot:  (2) GHP Reactor Sonar/Sounders:  (1) Garmin GSD 25 Advanced Sonar (1) Garmin GSD 26 CHIRP Sonar GPS:  (2) Garmin GPSMAP 942 with charts (4) Garmin GPSMAP 8616 with BlueCart G3 coastal and LakeVu G3 inland maps   Night Vision Camera:  (1) FLIR Thermo Voyager Entertainment System:a. Audio/Video Equipment (2) SeaTel 100TVHD Sat TV antennas; Functional control of the entire A/V system is through touch panels located in every room. Each room has autonomous control of the DVD movie library and the CD music library, as well as U. S., Caribbean, and European satellite television. All receiver equipment is located in a central A/V room and networked throughout the yacht. b. Monitoring System Hyak Electroworks the programmable logic-based system, with (6) 12” color touch-screens installed throughout. A SIMnet integration and monitoring network connects the vessel’s system to allow remote monitoring, data logging, power management, and diagnostics.

GALLEY AND LAUNDRY EQUIPMENTMain Galley EquipmentCooking Equipment:  (2) 4-Burner Professional Cooktop (1) Extraction hood with independent fixed Fire-extinguishing system (2) Convection Ovens (1) Microwave Oven  (2) Warming drawers  Refrigeration/Freezer:  (1) Sub-Zero Refrigerators/Freezers (1) Manitowoc Ice Maker – in Pantry (1) Sub-Zero Ice Maker Dishwasher:  (2) Miele model G7856 Trash Compactor:  (2) KitchenAid model  Crew Galley/Mess EquipmentCooking Equipment:  (1) Microwave (1) 4-Burner electric cooktop Refrigeration/Freezer:  (1) Walk-In Cooler/Freezer with (2) Condensing Units (1) Upright Refrigerator / Freezer Dishwasher:  (1) GE model GSD6900JWW Trash Compactor:  KitchenAid model KUCS30CTWH  Laundry EquipmentMain Laundry Equipment  (3) Commercial Duty Washers (3) Commercial Duty Dryers

TENDERS AND TOYSTenders:  (1) Tender – TBD (2) Wave Runners - TBD Dive Gear:  TBD

DECK EQUIPMENTAnchor Windlass System:  (2) Maxwell SY-26 windlasses, 15KW electric Aft Warping Capstans:   (6) Maxwell VC-6000 Electric Anchors:  (2) 360KG “Pool N” type, balanced, electro-polished stainless steel Anchor Chain:  (2) 600 feet of 22mm grade-2 stud-link Boat Crane and Davits:  (1) 5000 lbs (2,270 kg) capacity– main crane (1) 1200 lbs (1,588 kg) capacity – bow davit Passerelle:  (1) 20’ (6 meter) hydraulic telescoping extension with swivel platform

SECURITY, FIRE FIGHTING AND SAFETY EQUIPMENTSecurity EquipmentCCTV System:  Networked through the A/V control system Cameras:  (10) Sony Network Color Camera with pan-tilt-Zoom Monitors:  Cameras can be viewed from any TV or fixed Monitor Fire Fighting EquipmentFire Control System:  Novenco XFlow water mist system in all living spaces FM-200 fixed fire extinguishing system in the Engine Room  Fire Extinguishers:  Provided throughout as required by ABS & MCA Alarms:  Consilium Salwico CS4000, with smoke, heat and flame detectors where necessary Safety EquipmentLife Rafts:  (4) Zodiac 16 person USCG and SOLAS approved Life Rings: (4) SOLAS approved type EPIRBS:  ACR 2742 (CAT 1, with GPS) Flares:  Per MCA requirements

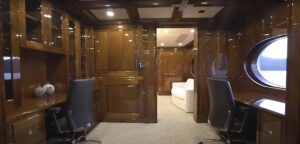

ACCOMMODATIONSGENERAL The vessel has accommodations for sixteen guests in (6) staterooms and eleven crew in (6) cabins. OWNER The Owner’s full-width suite is located on the main deck. The owner’s office is to starboard upon entering the master suite hallway, which then leads forward into the master suite. This is a huge master comprising two large walk-in closets, vanity and his/her en suite bathrooms.  The room is an elegant mix of fabric panels and satin-finished wainscot. GUESTS There are (4) large guest cabins located on the lower deck along with a full-beam VIP suite. All (5) cabins have en suite bathrooms with spacious marble showers; the VIP also has a large Jacuzzi tub. Additionally, the (2) forward guest cabins have Pullman berths.   CREW There are (4) upper/lower crew cabins forward of the spacious crew’s quarters on the lower deck, plus a large captain’s cabin aft of the wheelhouse and a single engineer’s cabin in the lazarette area all with en suite bathrooms. Crew access to all decks is via a dedicated crew stairway.

COMMENTSHull #038 by Christensen Yachts offers the unique opportunity to purchase & personalize a new yacht with full warranties in time for the Spring, 2020. This large volume yacht features Christensen’s latest design & engineering unmatched by her predecessors.  Her custom interior décor features accommodations for up to 16 guests in 6 staterooms with a voluminous master suite located on the main deck, complemented by a full-width VIP suite and four equally impressive guest staterooms on the lower deck. World Class Pedigree Fiberglass Motor Yacht available Spring, 2020 Fresh new wide-body design with classic interior Accommodations for up to 16 guests in 6 staterooms incl. on deck master suite & full-width VIP on the lower deck Elevator provides unlimited access to all decks including the sundeck Dayhead on Sundeck Touch and Go Heli-pad on Sundeck Emergency Generator on Sundeck Bulbous Bow MTU 12V4000 series main engines provide 14-knot cruising & global cruising capabilities  ABS Classification

Fly Yachts is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Merle Wood & Associates.

Specifications

From the listing data. Fields the listing doesn't supply are not shown.

General

Builder
Christensen
Model
Model Year 2020
Year
2020
Location
Ketchikan, AK
Condition
New
Length overall
164 ft
Beam
29 ft
Draft
8 ft

Engines and performance

Engines
2 × MTU 12V4000 M53

Accommodations and tankage

Cabins
6
Heads
6

Not specified in this listing: engine hours, cruising speed, top speed, range, hull material and fuel capacity. Ask a broker to confirm.
