Yachts for sale / ILIAD 75

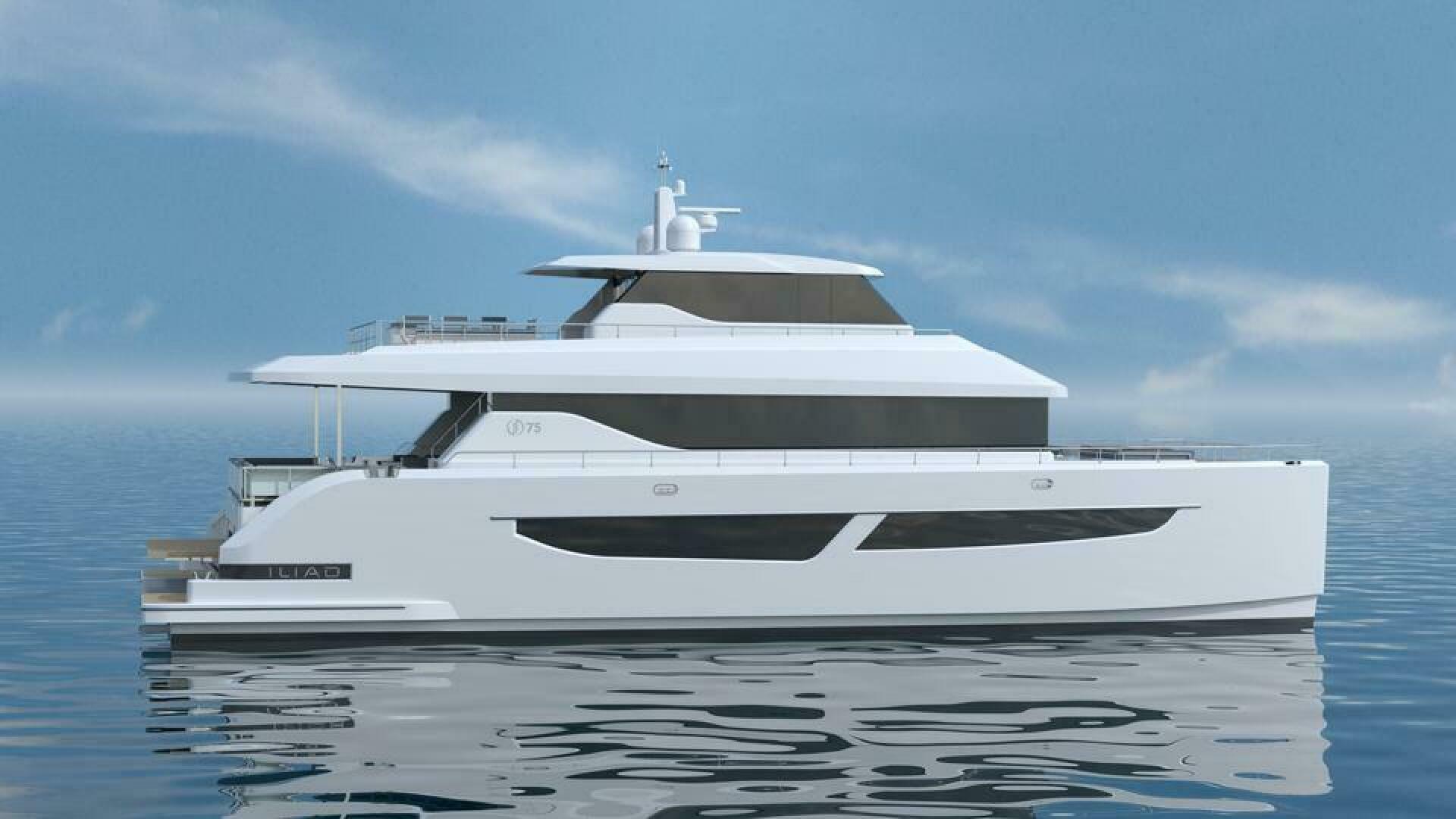

2026 ILIAD 75

Dania Beach, FL, US 76.3 ft · 31.33 ft' beam 3 cabins 23 kn kn top
Asking
$5,790,000
Our Take

The 2026 ILIAD 75 represents the flagship evolution of ILIAD Catamarans' long-range cruising platform—a 76-foot, 31-foot-beam catamaran engineered for owners who demand both extended offshore capability and refined onboard comfort. Built in Dania Beach, Florida, this motor yacht combines the structural integrity and fuel efficiency that define the modern luxury catamaran segment with a thoughtfully designed interior and comprehensive systems integration that support seamless extended voyages and comfortable entertaining.

Propulsion, Performance & Range

Twin Volvo D11 725 HP engines deliver 23-knot maximum speed and a 17-knot cruising capability, supported by a 2,641-gallon fuel capacity that extends cruising range well beyond 4,000 nautical miles. The dual-engine architecture includes separate, independently accessible engine rooms with watertight doors at the lower deck and hatch access from the main deck—a design feature that enhances both operational redundancy and service accessibility. Each engine room is fitted with a Racor 900MA30 fuel filter, automatic fire suppression via Seafire systems with heat sensors, moisture-eliminating air inlets, and forced ventilation blowers. A Reverso 150 GPH fuel polishing system maintains fuel quality during extended cruising.

Propulsion hardware reflects commercial-grade marine engineering: duplex stainless-steel shafts with flanged shaft seals, flexible couplings, Aquadrive thrust bearing systems on each shaft, NiBrAl five-blade propellers, and stainless-steel 316L rudders. Rope cutters on both shafts protect against fouling, while Seastar EPS power steering and Hydrotab interceptors provide precise helm control and sea-state compensation. Two hydraulic windlasses with independent capstans support anchor handling, complemented by dual stainless-steel anchors (80 kg each) and 100-meter anchor chain (13 mm diameter) on each bow.

Power Generation & Electrical Systems

Two 18 kW Kohler gensets (50 Hz; 21 kW for 60 Hz systems) provide independent power generation with built-in parallel controls, enabling seamless load sharing and redundancy. The electrical infrastructure centers on a sophisticated Victron ecosystem: six lithium house batteries (LFP 25.6V 200Ah each) managed by Victron Lynx Smart BMS 500, dual Victron Quattro 24/5000/120 inverter/chargers, Victron Color Control GX monitoring, and Victron GX Touch 70 battery and tank display. This architecture supports 24 VDC and 230 VAC ship systems with dual 50-amp shore power connections (Marinco) and isolation transformers. Engine start batteries (four units, 200 Ah) and genset start batteries (two units, 150 Ah) ensure reliable cold-start capability. Eight Marco 2000 bilge pumps with Ultra pumpswitch controls, dual centralized bilge and fire main pumps (Gianneschi), and a cockpit fire hydrant provide comprehensive water management and emergency response capability.

Climate control is delivered via dual Climma DC90 CWS variable-speed air-conditioning units (180,000 BTU total), while two 80-liter Quick Spa water heaters supply hot water throughout the vessel. Two freshwater pumps support the 396-gallon water capacity, and a comprehensive grey and black water system includes four sump

Provided listing description Click to read the original broker text

The ILIAD 75, the new flagship of the ILIAD Catamarans range, sets a new standard for luxury long-range cruising catamarans with its exceptional performance, class-leading fuel efficiency, and luxurious design. Tailored for discerning owners seeking to explore remote destinations or enjoy opulence close to home, this motor yacht offers expansive social and relaxation areas, versatile layout options suitable for charter use, and meticulous craftsmanship. Promising exhilarating speeds and a cruising range over 4,000nm, the ILIAD 75 integrates state-of-the-art technology for ease of handling and safety. Its accommodations boast generous headroom, natural light, and ample storage, making it ideal for extended voyages. Should you be looking for alternatives to Leopard , Lagoon, Horizon , Aquila, Two Oceans, Fountain Pajot, Long Reach you'd be extremely surprised by our high quality build, range and spacious interiors.

ILIAD 75 Luxury Catamaran: A New Standard in Long-Range Cruising Performance and Design
The ILIAD 75 represents a significant evolution in the luxury catamaran market, establishing a new flagship for ILIAD's expanding range of long-range cruising vessels. At 76.33 feet with a generous 31.33-foot beam, this 2026 motor yacht combines advanced naval architecture, refined European craftsmanship, and comprehensive marine systems to deliver both exceptional range and the comfort required for extended offshore voyages. Positioned in Dania Beach, Florida, this model exemplifies the brand's commitment to challenging established competitors such as Leopard , Lagoon, Horizon , Aquila , Fountain Pajot, and Two Oceans through superior build quality, operational range, and interior spaciousness.
Hull Design and Structural Engineering
The ILIAD 75's hull construction reflects modern composite engineering principles. The hull bottom is solid glass-reinforced plastic (GRP), while the topsides and superstructure employ a sandwich construction combining GRP with PVC core material at 80–100 kg/m³ density. This approach balances structural rigidity with weight efficiency, contributing to the vessel's advertised cruising range exceeding 4,000 nautical miles. All hull lamination—including the shell, structural elements, and bulkheads—utilizes vinylester resin, a marine-grade material selected for superior moisture resistance and durability in saltwater environments. Secondary laminates employ polyester isophtalic resin, and the entire structure is produced via resin infusion, a closed-molding technique that reduces volatile organic compound emissions and improves fiber-to-resin ratio consistency. GRP stiffeners are hand-laid directly onto the shell, and watertight bulkheads are laminated in place, ensuring structural continuity and watertight integrity essential for ocean passages. The hull is finished with NPG gelcoat in white, with painted topsides and superstructure providing aesthetic refinement and UV protection. The lower deck structural cabin sole and all watertight bulkheads employ the same sandwich construction methodology. Fuel tanks are fabricated from aluminum 5052—a marine-grade alloy—with inspection ports for maintenance access. Water tanks are stainless steel, eliminating corrosion concerns and safeguarding freshwater quality during extended cruises.
Power, Propulsion, and Fuel Efficiency
Twin Volvo D11 engines, each rated at 725 horsepower, deliver the ILIAD 75's performance envelope. The vessel achieves a maximum speed of 23 knots and maintains a cruising speed of 17 knots, with the fuel capacity of 2,641 gallons supporting the advertised 4,000+ nautical mile range. This range-to-fuel ratio underscores the design's emphasis on long-distance cruising efficiency—a critical metric for owners planning remote-destination exploration. The dual engine-room configuration features independent access via a main deck hatch and watertight lower-deck doors, facilitating routine maintenance and emergency response. Each engine is equipped with a Racor 900MA30 fuel filter, and a centralized Reverso 150 gallons-per-hour fuel polishing system maintains fuel quality during extended periods at sea. A Jabsco VR050-2122 fuel transfer pump provides inter-tank balancing capability. Both engines employ duplex stainless-steel shafts with flanged shaft seals and flexible couplings, reducing vibration transmission to the hull. Each shaft is supported by an Aquadrive thrust-bearing system, a marine-industry standard that isolates engine vibration from the hull structure. Twin NiBrAl propellers with five fixed blades are protected by Propspeed paint, a copper-based antifouling system that reduces biological growth and drag. Steering is managed through Seastar EPS (Electric Power Steering), a redundant system that enhances helm responsiveness and reduces physical effort during extended cruising. Twin stainless-steel 316L rudders provide directional control and contribute to the vessel's maneuverability in confined waters. Muffling is handled by Centek mufflers on both main engines and the generator, reducing operational noise.
Power Generation and Electrical Architecture
Two Kohler gensets—each rated at 18 kilowatts for 50Hz systems (21 kilowatts for 60Hz)—provide independent electrical generation, with built-in parallel controls allowing simultaneous operation for increased capacity during high-demand periods such as air conditioning operation or battery charging. The electrical system is built around a 24-volt direct-current primary architecture with 230-volt alternating-current ship systems. Four engine start batteries (200 ampere-hours each) and two generator start batteries (150 ampere-hours) provide redundancy for propulsion and power generation. The house bank comprises six Victron lithium iron phosphate (LFP) batteries, each 25.6 volts and 200 ampere-hours, delivering substantial energy storage for hotel loads and extending generator runtime during extended anchoring. Two Victron Quattro 24/5000/120 inverter/chargers convert DC power to 120-volt AC for appliances and convert shore power to DC for battery charging. The system includes two Victron Orion 24/12-70 converters and two Orion-Tr Smart DC-DC isolated chargers for multi-voltage compatibility. A Victron Color Control GX and Lynx Smart BMS 500 battery management system monitor and optimize charging, discharging, and load distribution across all batteries. Two Victron Lynx Distributor 1000 DC busbars consolidate power distribution, while a Victron GX Touch 70 monitor provides real-time visibility into battery state of charge, voltage, current, and tank levels. This comprehensive battery management approach enables efficient energy utilization during extended cruising and reduces reliance on genset runtime. Shore power connections are provided via dual 50-ampere Marinco connections with isolation transformers, permitting simultaneous charging from two shore pedestals and protecting onboard systems from shore-side electrical faults. Main distribution switchboard panels manage both AC and DC circuits, with BEP circuit breakers and fuses providing overcurrent protection. Lighting throughout the vessel employs LED technology via Quick Spa fixtures, reducing power consumption and extending service intervals. Navigation and anchor lights are Hella Marine units. Eight Aqualuma underwater lights enhance nighttime aesthetics and facilitate night-time swimming operations.
Propulsion Auxiliaries and Thruster Systems
The ILIAD 75 incorporates dual hydraulic bow and stern thrusters, enabling independent lateral movement and significantly improving docking and anchoring maneuverability, particularly valuable for single-captain operation or maneuvering in confined spaces. Two hydraulic windlasses with independent controls provide anchor handling for the dual 80-kilogram anchors and 100-meter anchor chains (13-millimeter diameter). Eight Marco 2000 bilge pumps with Ultra pumpswitches provide redundant water removal from multiple bilge stations. A centralized Gianneschi bilge pump and fire main system consolidates emergency water removal and fire suppression water distribution. Four fire dampers with remote shutoff protect engine rooms from propagating flames, and two automatic Seafire fire-suppression systems with heat sensors and audible alarms provide rapid response capability.
Length
76.3 ft
Beam
31.33 ft'
Year
2026
Builder
ILIAD
Model
75
Cabins
3
Max speed
23 kn kn
What type of vessel is the ILIAD 75, and what makes it different from other luxury catamaran options?
The ILIAD 75 is a 76-foot luxury long-range cruising catamaran designed as the flagship model of the ILIAD Catamarans range. Unlike monohull alternatives, the twin-hull catamaran design provides exceptional stability, reduced fuel consumption, and a shallow 5.33-foot draft that enables access to remote anchorages. The ILIAD 75 is constructed with advanced composite materials including vinylester resin lamination, PVC-core sandwich hulls, and stainless steel structural components. It competes directly with established brands like Leopard, Lagoon, Horizon, and Aquila, but distinguishes itself through a combination of class-leading fuel efficiency, a cruising range exceeding 4,000 nautical miles, and spacious interior volumes that maximize usable living space for extended voyages.
What engine package does the ILIAD 75 have, and what kind of performance and range can you expect?
The ILIAD 75 is powered by twin Volvo D11 engines, each producing 725 horsepower, for a combined 1,450 HP. This propulsion system delivers a cruising speed of 17 knots and a maximum speed of 23 knots. With a 2,641-gallon fuel capacity and the catamaran's efficient hull design, the vessel achieves a cruising range exceeding 4,000 nautical miles, making it suitable for extended ocean passages and remote destination exploration. The dual-engine configuration provides redundancy and independent engine room access from both the main deck and lower decks, enhancing safety and maintenance accessibility during long-range cruising.
What navigation and electronics systems are installed on the ILIAD 75?
The ILIAD 75 is equipped with a comprehensive Raymarine electronics suite designed for confident offshore operation. Navigation systems include three Raymarine Axiom XL 16-inch multifunctional displays, a Raymarine open-array 4-foot 4kW HD color radar, GPS (RS130), and an integrated echo sounder (i70). The vessel features a Raymarine autopilot with dedicated control panel, VHF radio with antenna, and AIS receiver with antenna for vessel tracking. Additional systems include a Raymarine fishfinder sensor package (CP100 + CPT120), an Airmar 120WX weather station for real-time meteorological data, searchlight, TV antenna, and multiple camera systems including two engine room cameras and three docking cameras. This integrated suite supports safe navigation, situational awareness, and precision maneuvering in varied conditions.
How is the helm station configured, and what control systems support ease of handling?
The ILIAD 75 features an enclosed flybridge helm station with two electrically adjustable pedestal seats and a full instrument panel integrated with the Raymarine electronics suite. The helm includes Seastar EPS electric power steering for responsive rudder control and reduced physical effort during extended cruising. Dual hydraulic bow and stern thrusters provide independent lateral thrust for precision docking and maneuvering in tight spaces. The enclosed flybridge design protects the helm operator from weather while maintaining 360-degree visibility through tempered glass windows and portlights. An electric TV lift for a 50-inch television and motorized blinds add convenience to the helm environment. The dual-engine configuration with independent engine room access and centralized bilge and fire main systems (Gianneschi) ensures that critical systems can be monitored and controlled from the helm during all phases of operation.
What cabin and accommodation layout does the ILIAD 75 offer for extended cruising?
The ILIAD 75 provides versatile accommodation options tailored for extended voyages and charter use. The interior features generous headroom, abundant natural light through hull portlights and cabin hatches, and ample storage throughout. Cabin berths are equipped with 150mm memory foam mattresses for comfort during long passages. The vessel includes multiple bathrooms with Kohler fixtures, sintered stone walls, ceramic washbasins, electric macerators, and shower enclosures. Fresh water capacity of 396 gallons supports extended cruising, while two 80-liter water heaters (Quick Spa BX80) provide hot water throughout the vessel. The layout incorporates full-height storage cabinets, under-floor storage compartments, and drawer systems with BLUM hardware designed for durability in a marine environment. Interior finishes include timber veneer, solid wood cabinetry, leather upholstery, and Caesarstone waterfall benchtops in key areas, creating a luxury residential atmosphere suitable for owners spending extended time aboard.
What galley and dining amenities are included in the ILIAD 75?
The ILIAD 75 galley is equipped with premium Fisher-Paykel appliances designed for serious cooking capability during extended cruising. The galley features a 476-liter fridge-freezer (RS90A1), a 70-centimeter cooktop (CI704CTB1), a 90-centimeter range hood (HP90IDCHX3), a 60-centimeter oven (OB60SMPTDB1), and a 45-centimeter combination oven-microwave (OM60NMTDB1). A 60-centimeter dishwasher reduces manual labor during extended voyages. The galley includes a double sink with faucet, extensive storage drawers and cupboards, and Caesarstone waterfall benchtops that combine durability with aesthetic appeal. The adjacent dinette area features a dining table with internal storage, fixed seating, side tables, and an undercounter wine fridge (RS6009V2RT1) plus beverage center (RS6009SBLT1). A separate liquor cabinet with glass storage and a cockpit servery with stone or Corian top provide additional entertaining capacity. Motorized blinds and Amtico flooring complete the galley and dining environment.
What electrical and power generation systems support extended offshore operation?
The ILIAD 75 features a sophisticated electrical architecture designed for self-sufficiency during extended cruising. Twin 18kW Kohler gensets (50Hz; 21kW for 60Hz systems) with built-in parallel controls provide independent power generation from each engine room. The vessel is equipped with six Victron lithium house batteries (LFP 25.6V 200Ah each), four engine start batteries (200 Ah), and two generator start batteries (150 Ah). Two Victron Quattro 24/5000/120 inverter-chargers manage power conversion and battery charging, while Victron Orion DC-DC chargers provide isolated charging circuits. The Victron Color Control GX and GX Touch 70 systems monitor battery state, tank levels, and system performance. Dual 50-amp shore power connections (Marinco) with isolation transformer enable efficient charging while docked. A fuel polishing system (Reverso 150 GPH) maintains fuel quality during extended storage, and centralized fuel management with dual Racor filters ensures engine reliability. This system supports extended offshore passages with minimal dependence on shore power.
What safety systems and structural features protect the vessel and crew during offshore passages?
The ILIAD 75 incorporates multiple redundant safety systems designed for offshore operation. The hull structure combines solid GRP bottom with sandwich construction (GRP and PVC core) on topsides and superstructure, providing impact resistance and buoyancy. All hull laminates use vinylester resin for superior moisture resistance, while internal structures employ polyester isophtalic resin. Watertight and structural bulkheads are laminated directly to the shell, creating a unified structure. Dual automatic fire-suppression systems (Seafire) with heat sensors and alarms protect each engine room. Four fire dampers with remote shut-off control air intake during emergencies. Eight Marco 2000 bilge pumps with Ultra pumpswitch plus centralized bilge and fire main systems (Gianneschi) provide redundant dewatering capability. Dual hydraulic windlasses with 100-meter anchor chain (13mm diameter) and two 80kg anchors enable secure anchoring in varied conditions. Dual rudders in stainless steel 316L with Aquadrive thrust bearing systems ensure steering redundancy. Safety equipment certified for 12 persons to CE or USCG standards includes life rafts, life jackets, and emergency signaling equipment. Rope cutters on each propeller shaft prevent entanglement hazards.
What exterior deck features and water access systems does the ILIAD 75 provide?
The ILIAD 75 offers extensive exterior deck space designed for entertaining and water activities. The cockpit features a servery with stone or Corian top, stainless steel rails with glass panels, and sliding aluminum and tinted glass doors (Alfab) for weather protection. A Portuguese bridge sofa and foredeck sofas with teak tables and high-low pedestals create social gathering areas. The enclosed flybridge includes a separate servery and side cabinet with 90-liter refrigeration. Moulded FRP stairs with stainless steel handrails connect the cockpit to the flybridge. Water access is facilitated by dual retractable telescopic swim ladders (Swissway Carina) at the swim platform, which features hot and cold shower faucets (Whale Twist). A hydraulic tenderlift platform with vertical travel enables tender launch and retrieval. Deck wash points at the cockpit, bow, and flybridge support maintenance and cleaning. Mooring hardware includes four stainless steel hawse pipes with 12-inch cleats, additional 13-inch cleats, pop-up cleats, and 17-inch bollards. Two stern hatches provide access to kayak storage compartments. Teak decking in select areas and molded non-skid surfaces throughout enhance safety and aesthetics.
What climate control, entertainment, and comfort systems are integrated throughout the ILIAD 75?
The ILIAD 75 provides comprehensive climate control and entertainment systems designed for comfortable extended cruising in tropical and temperate environments. Twin Climma DC90 CWS variable-speed air conditioning units deliver 180,000 BTU total cooling capacity, with independent systems serving different vessel sections. Motorized blinds throughout the saloon, galley, dinette, and flybridge helm control light and heat gain. The saloon features a drop-down 65-inch television, while the flybridge helm includes an electric TV lift for a 50-inch display. A premium Fusion audio system with MS-RA770 source unit, flybridge remote control, amplifier, subwoofer, and ten speakers throughout the vessel provides high-fidelity entertainment. Eight Aqualuma underwater lights create ambient lighting effects and enhance nighttime aesthetics. Quick Spa interior and exterior LED lighting systems offer flexible illumination control. Navigation and anchor lights by Hella Marine ensure regulatory compliance and visibility. All outdoor cushions are fabricated from Sunbrella fabric for UV and weather resistance. Interior furnishings include leather upholstery, timber veneer cabinetry, and laminate or Amtico flooring throughout, creating a residential-quality living environment suitable for extended offshore passages.
What type of owner profile and cruising style is the ILIAD 75 designed to support?
The ILIAD 75 is engineered for discerning owners who prioritize long-range capability, fuel efficiency, and spacious accommodations for extended voyages to remote destinations. The vessel's 4,000-plus nautical mile range, shallow 5.33-foot draft, and dual-engine redundancy make it suitable for exploratory cruising in challenging environments where self-sufficiency is essential. The generous interior volumes, premium galley appliances, multiple cabins, and full-service entertainment systems support extended family cruising or charter operations. The catamaran's stability and reduced motion characteristics appeal to owners seeking comfort during ocean passages. The versatile layout accommodates various accommodation configurations, making it adaptable to different ownership models, from private use to charter charter operations. The integrated Raymarine electronics suite, autopilot, bow and stern thrusters, and centralized monitoring systems reduce crew workload and enable confident operation by experienced boaters. The ILIAD 75 is particularly well-suited for owners planning multi-month or multi-year cruising programs who value reliability, comfort, and the ability to access anchorages unavailable to deeper-draft vessels.
