Yachts for sale / Pro Boat Yachts CAT 62 FD

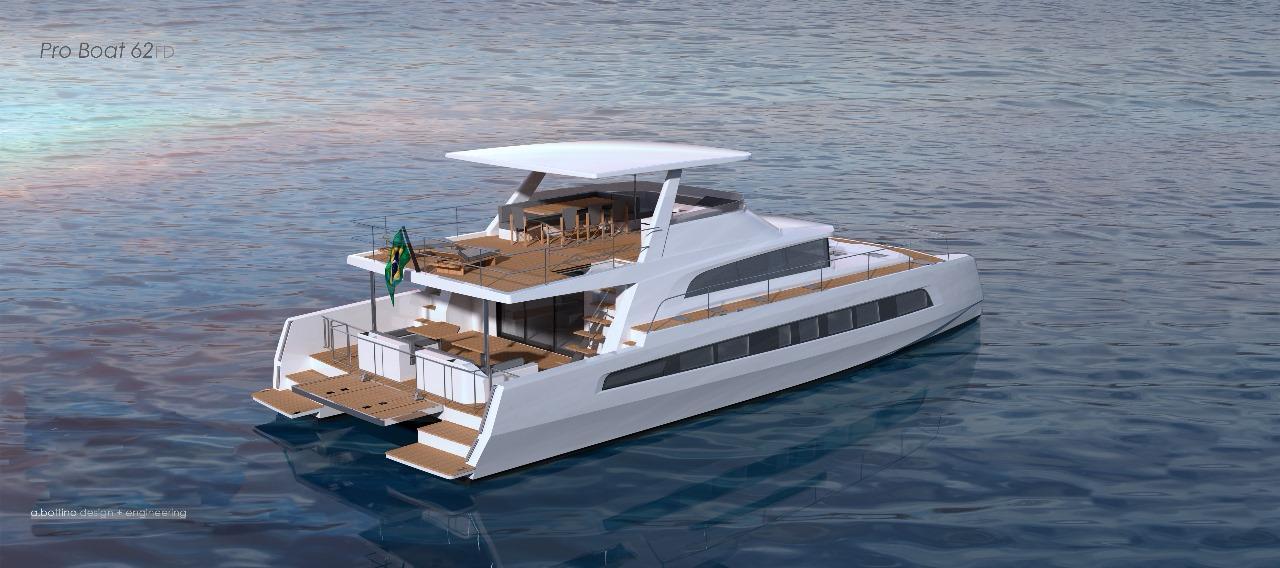

2027 Pro Boat Yachts CAT 62 FD

Miami, FL, US 64 ft · 26 ft' beam 6 cabins 20 kn kn top
Asking
$2,900,000
$2,800,000
Reduced by $100,000
Our Take

The 2025 Pro Boat Yachts CAT 62 FD represents a purpose-built 64-foot catamaran designed for serious cruisers and fishing enthusiasts seeking a blend of seaworthiness, comfort, and operational efficiency. Built by Pro Boat Yachts—a Rio de Janeiro-based shipyard with over two decades of experience crafting fiberglass monohulls and catamarans ranging from 43 to 100 feet—this model reflects the builder's commitment to hand-laid construction, vacuum-bonded composite techniques, and collaboration with internationally recognized design studios.

Hull, Propulsion & Performance

The CAT 62 FD displaces 28,000 kg at full load and features a 26-foot beam that provides exceptional stability and interior volume. Twin Yanmar 370 hp engines deliver a cruising speed of 16 knots with a maximum speed of 20 knots, while the proprietary Chicken Foot Drive propulsion system ensures smooth power delivery. The catamaran's 3'6" draft makes it suitable for shallow-water exploration and protected anchorages. The hull employs vinyl ester resin with osmosis resistance, hand-laid and vacuum-bonded rigid PVC foam-core construction, and is protected by a cathodic protection system with sacrificial anodes. Bottom paint and white polyurethane topside finishes support long-term durability.

Fuel Capacity & Range

With 2,700 liters of fuel capacity and 1,000 liters of freshwater tankage, the CAT 62 FD is configured for extended coastal and offshore cruising. The 400-liter blackwater tank supports comfortable liveaboard operation. A 24VDC electric anchor winch with 100 meters of 13mm galvanized chain provides confident ground tackle.

Engineering & Power Generation

Two Northern Lights generators—one 25 kVA and one 9 kVA—supply independent AC and DC power for hotel loads, air conditioning, and galley appliances. The electrical system operates on 24V DC and 220V/240V AC with multiple battery banks, three dedicated chargers (110 amp, 75 amp, and 40 amp), and comprehensive circuit protection. Below-waterline bronze ball valves, saltwater engine and generator filters, and vibration isolation throughout the machinery spaces reflect marine-grade engineering standards.

Climate Control & Mechanical Systems

A 72,000 Btu chiller air conditioning system with individual cabin thermostats and heating maintains comfort across all living spaces. Two 230V AC electric water heaters provide abundant hot water. An electric bow thruster with joystick controls simplifies docking and close-quarters maneuvering. Freshwater supply systems in the engine room support maintenance and deck washdown.

Cabin Layout & Accommodations

The CAT 62 FD sleeps up to six with a thoughtfully distributed layout. The owner's cabin features a private ensuite bathroom with shower stall, Corian countertop, and imported electric toilet. A VIP cabin with queen-size bed and storage niches under the mattress serves distinguished guests. A guest cabin with two single beds and shared bathroom provides additional accommodation. A dedicated crew cabin with private bathroom and two single beds allows for professional crew operations. All cabins feature individual air conditioning control, LED lighting, reading lights, multiple 220V outlets, and USB charging.

Main Salon & Galley

The main salon opens to the aft deck via a tempered glass sliding door

Provided listing description Click to read the original broker text

PRO BOAT CAT 62 FD #hull N.02Pro Boat Yachts Shipyard was founded in 1998 in Rio de Janeiro with a clear vision: to create world-class vessels that blend craftsmanship, innovation, and luxury. Over the years, we have delivered more than 20 yachts, including fiberglass hulls (monohulls, and catamarans) ranging from 43 feet to 100 feet. Each one has been meticulously crafted to the highest standards. Our skilled team has built a diverse range of boats, catering to the unique needs of our clients. Every yacht we build is designed with an unwavering commitment to quality, attention to detail, and a passion for perfection. In 2003, they expanded our operations to the picturesque Angra dos Reis, where we continue to build not just boats, but dreams. Their designs have gained international recognition, with projects exported to the United States and Europe. This global reach reflects our dedication to excellence and the trust our clients place in their projects. In addition to new builds, Pro Boat Yachts has become a leader in the art of boat refurbishments and customizations. They specialize in transforming vessels from various brands into personalized, high-performance masterpieces. Whether it’s restoring a classic yacht or reimagining an existing design, we bring new life and sophistication to every project. At Pro Boat Yachts, they believe in collaboration and innovation. To ensure every project exceeds expectations, they work with top-tier design studios, both in Brazil and internationally. Their partnership with renowned designers like Fernando de Almeida Yacht Design and a.bottino design+engineering allows us to deliver bespoke solutions that seamlessly integrate advanced technology, cutting-edge materials, and visionary design. Their expertise goes beyond just construction. They understand that building a yacht is about more than just the boat—it’s about realizing your dreams and aspirations. To do this, they leverage the latest in 3D design technology, allowing our team to create detailed, accurate models that bring your vision to life long before construction begins. This process ensures every detail is perfected, from the hull to the deck and interiors. Whether you are commissioning a new yacht or embarking on a customization project, we offer a comprehensive service that covers every aspect of yacht creation. From conceptual design to final delivery, we ensure that your boat is not only a reflection of your style and needs but also a high-performance vessel built to last. At Pro Boat Yachts, their mission is simple but powerful: to deliver your dream yacht with precision, on time, and within your budget. We take pride in creating exceptional yachts that combine luxury, style, and functionality. Our team is committed to providing an unparalleled level of craftsmanship, ensuring every detail is carefully executed and every element of the design is thoughtfully considered. They understand the importance of your investment and treat each project as if it were our own. With a passion for perfection and a deep respect for the art of yacht building, we strive to exceed your expectations at every stage of the process. From the initial design sketches to the final touches, Pro Boat Yachts is dedicated to bringing your dream yacht to life—one that you will cherish for years to come. PRO BOAT CAT 62 FDSTANDARD SPECIFICATIONS: Overall Length (L. O. A.): 64’ (19.6 m) Waterline Length (L. W. L.): 62’ (19.0 m) Beam: 26’ (8.0 m) Draft: 3’ 6” (1.1 m) Loaded Weight (Full Load): 28,000 kg Fuel Tanks: 2,700 Liters Freshwater Tank: 1,000 Liters Blackwater Tank: 400 Liters Propulsion: Chicken Foot Drive STANDARD EQUIPMENT: ENGINEERING Two YANMAR 370 hp engines with gears. Two Northern Light Generators, one 25 KVA and one 9 KVA. HULL AND DECK Bronze hull valves. Vinyl ester resin on the hull, resistant to osmosis. Cathodic Protection system with sacrificial anode on the transom. White polyurethane paint. Micron bottom paint. Hull, deck, and superstructures laminated with hand lay-up and vacuum-bonded rigid PVC foam core. Vacuum-laminated fiberglass bulkheads. 6 stainless steel cleats (2 bow, 2 midship, 2 upper stern). 30 cm cleats, polished AISI 316L with counter plates for fixing. All cleats are bolted with through screws and stainless steel backing plates. Protective covers for external upholstery. Delta anchors in stainless steel 316L. The anchoring system includes a 24VDC electric winch. 100 meters of 13mm galvanized chain. STERN AND AFT DECK Hot and cold shower on the fishing deck. Dockside power inlet. Water inlet for the dock with a 3-stage filter battery. Rubber seals on all hatches and access doors, with fiberglass hatches manufactured according to the mold. Courtesy spotlights under the edges with 3000K light (as per deck technical specifications). External stairs and handrails in aluminum 5052 T6 to access the flybridge with teak steps. Saloon entry with pneumatic sliding door. Icebox for drinks. 4 speakers. Stainless steel gas struts on hatches, deck, and fishboxes. Mezzanine sofas with fabric upholstery and protective covers (as per interior technical specifications). Integrated stern platform with the transom. (2) Cleats at the stern. MAIN SALON AND KITCHEN Access door from the stern to the salon with tempered glass 8 mm, manual opening. Dinette (as per interior technical specifications). Ceiling lining with Fast-mount fixings (as per interior technical specifications). Detailing of furniture as per interior technical specifications. Sofas (as per interior technical specifications). Salon floor in laminate (as per interior technical specifications). Tempered dark glass windows in the salon. 4-burner electric cooktop, 220V. 220V exhaust hood. 220V microwave oven. 220V refrigerators. Ice maker. C-Zone automation panel and AC and DC circuit breakers with complete instrumentation and electronics. 60-inch LED 4K TV. 2 evaporators of 16,000 Btu’s for air conditioning. FLYBRIDGE Console with controls. Hardtop. Stainless steel 316L railings. Sofa (Fabric as per architectural technical specifications). Two 12V and USB outlets on the flybridge. Two 12V and two USB outlets on the panel. 4 speakers. Countertop with sink. OWNER’S CABIN Furniture and finishes as per technical specifications. Air conditioning with temperature control and heating. Reading lights. Vinyl flooring. Reading lights with separate switches. Two 220V outlets and two USB outlets. 1 evaporator of 9,000 Btu’s. OWNER’S CABIN BATHROOM Shower stall. Air conditioning outlets from the master cabin. Cabinet with mirror. Countertop in Corian (as per interior technical specifications). Imported electric toilet (24V). 220V outlets. Stainless steel towel racks (as per interior technical specifications). GUEST CABINS Air conditioning with temperature control and heating. LED lighting. Two 220V outlets and two USB outlets. Decorative LED lights for ceiling and floor (as per interior technical specifications). Vinyl flooring. GUEST CABIN Air conditioning with temperature control and heating. Two single beds. Shared bathroom. Vinyl flooring. LED lights (as per interior technical specifications). Two 220V outlets and two USB outlets. Decorative LED lights for ceiling and floor (as per interior technical specifications). Two reading lights with separate switches. VIP CABIN Air conditioning with temperature control and heating. Queen-size bed. Vinyl flooring. Shared bathroom. Two reading lights with separate switches. Two 220V outlets and two USB outlets. Storage niches on both sides of the bed with lights. Under-bed drawers. CREW CABIN Two single beds. Air conditioning with temperature control and heating. Private bathroom. Two 220V outlets and two USB outlets. MECHANICAL AND ENGINE ROOM Propulsion system with imported 22HS shaft, bronze propellers. Electric Bow Thruster with joystick controls. Chiller air conditioning system, 72,000 Btu’s. Freshwater supply for maintenance and general cleaning in the engine room. DC freshwater system. Fuel and generator water separators. Below-waterline ball valves in bronze. Flap system. (2) 230V AC electric water heaters. Saltwater filters for engines and generators. Vibration mounts for engines, generators, pumps, and air conditioning units. ELECTRICAL SYSTEM Service voltage: 24V DC and 220V/240V AC. 24V DC and 220V AC power supply with circuit breakers at the salon control panel. Navigation lights with international IMTRA approval (USCG). Batteries in independent 12V and 24V banks. Battery chargers: (1) 24V 110 amp with thermal relay and automatic shutdown, (1) 24V 75 amp, and (1) 24V 40 amp. Battery switches for the battery banks. IP 66 lighting in the engine room. 25 kVA Northern Lights generator with remote start from the salon. (2) 220V 63-amp dockside power outlets. Galvanic isolator and grounding system. GFI circuit breakers in certain areas. AUDIO AND AUTOMATION External speakers controlled in 3 zones via Fusion APOLLO. Fusion speakers. Fusion sound amplifiers. C-ZONE monitoring system for integrated control of the vessel's systems such as lighting, engine data, tank monitoring, navigation lights, and pump control and monitoring. (Optional). LIGHTING IMTRA LED lighting in all interior spaces (as per interior technical specifications). Interior ceiling lighting with LED fixtures and LED cords (as per interior technical specifications). LED ceiling lights with decorative cords under the beds (as per interior technical specifications). (4) underwater lights. Mezzanine/stern deck ceiling lighting (as per interior technical specifications). SAFETY Automatic fire suppression system in the engine room (FM200). Smoke and CO2 detectors in the salon and all lower deck compartments. Fire extinguishers distributed according to Norman 3 standards. ACCESSORIES/FINISHES Venetian blinds with blackout for all windows to regulate natural light and privacy (as per interior technical specifications). Protective covers for all external upholstery. Dinghy rack on the stern platform – parallel bars.

2025 Pro Boat Yachts CAT 62 FD: A 64-Foot Fiberglass Catamaran Designed for Luxury Cruising and Extended Coastal Exploration
Overview
The 2025 Pro Boat Yachts CAT 62 FD represents a contemporary approach to mid-sized catamaran design, combining Brazilian-built fiberglass construction with European-influenced naval architecture and comprehensive onboard systems integration. At 64 feet in length overall with a 26-foot beam, this catamaran hull form delivers the stability, shallow draft, and spacious deck layout characteristic of modern multihull cruising vessels. Pro Boat Yachts, established in Rio de Janeiro in 1998 and expanded to Angra dos Reis in 2003, has built a reputation for delivering fiberglass monohulls and catamarans ranging from 43 to 100 feet, with designs that have gained international recognition across North American and European markets. The CAT 62 FD reflects this shipyard's commitment to hand-laid fiberglass construction, vacuum-bonded composite lamination, and detailed systems integration—all engineered to support extended cruising, entertaining, and comfortable coastal exploration.
Hull Design and Construction
The CAT 62 FD's hull and structural package emphasizes durability and long-term seaworthiness. The fiberglass construction employs vinyl ester resin throughout the hull, a material choice that resists osmotic degradation and extends the structural lifespan of the vessel. The hull, deck, and superstructures are laminated using hand lay-up methods combined with vacuum-bonded rigid PVC foam core, creating a composite structure that balances strength with weight efficiency. Fiberglass bulkheads are vacuum-laminated to ensure consistent material density and structural integrity. Below the waterline, the catamaran is protected by a cathodic protection system with sacrificial anodes mounted on the transom, preventing galvanic corrosion in saltwater environments. Bronze through-hull valves provide reliable seawater intake and discharge, while below-waterline ball valves in bronze offer manual isolation capability in the mechanical spaces. The hull is finished with white polyurethane topside paint and Micron bottom paint, a copper-based antifouling system that reduces marine growth accumulation and maintains performance over extended cruising seasons. The 3-foot-6-inch draft is a defining characteristic of catamaran design, enabling access to shallow anchorages and coastal areas that deeper-draft monohulls cannot reach—a practical advantage for cruising the Bahamas , Florida Keys, and other shallow-water destinations.
Propulsion and Power Systems
Twin Yanmar 370-horsepower diesel engines with integrated gearboxes provide the primary propulsion. These engines are paired with a Chicken Foot Drive system, a specialized propulsion configuration that delivers power to the dual catamaran hulls while maintaining efficiency and maneuverability. The engines are mounted on vibration-isolated bases to minimize structure-borne noise and vibration transmission to the cabin and guest spaces. The fuel capacity of 2,700 liters (approximately 713 gallons) supports extended cruising at the vessel's 16-knot cruising speed, with a maximum speed of 20 knots available when conditions and operational needs permit. An electric bow thruster with joystick control enhances docking and tight-space maneuvering, allowing the helm operator to pivot the vessel without relying solely on engine power and rudder input. The freshwater system holds 1,000 liters, adequate for a crew of six to eight and extended periods away from shore-based resupply. A blackwater tank of 400 liters serves the vessel's sanitation systems, while a 3-stage filter battery on the dockside water inlet ensures incoming water is free of sediment and contaminants before entering the freshwater tanks.
Electrical and Generator Systems
Power generation is handled by two Northern Lights diesel generators—a 25 kVA primary unit and a 9 kVA auxiliary unit—allowing independent operation of hotel loads and engine room systems. Both generators include remote start capability from the salon control panel, enabling the operator to initiate power generation without entering the engine room. A 24V DC electrical service is supplemented by 220V/240V AC power derived from the generators or dockside shore power. The battery system comprises independent 12V and 24V banks, with three dedicated battery chargers: a 24V 110-amp unit with thermal relay and automatic shutdown, a 24V 75-amp charger, and a 24V 40-amp charger. This redundancy ensures reliable charging under varying load conditions and provides backup capacity if a primary charger requires service. Battery switches allow isolation of individual banks for maintenance and troubleshooting. The electrical infrastructure includes 220V/63-amp dockside power outlets, a galvanic isolator to prevent stray current corrosion, and a comprehensive grounding system. Navigation lights carry international USCG approval through IMTRA, ensuring compliance with maritime regulations across North American waters. GFI (ground fault interrupt) circuit breakers protect certain circuits, particularly in wet areas such as the galley and heads.
Helm, Controls, and Navigation Integration
The flybridge console houses primary helm controls, providing elevated sightlines for navigation and maneuvering. Joystick steering—a feature increasingly common on modern yachts—simplifies helm operation by allowing intuitive directional input without the mechanical feedback and learning curve of traditional wheel steering. The joystick integrates with the bow thruster, enabling coordinated lateral thrust and main engine vectoring for seamless boat handling. A C-ZONE automation and monitoring system integrates engine data, tank level monitoring, lighting circuits, navigation light status, and pump operation into a unified control interface accessible from the salon. This system reduces the cognitive load on the operator by consolidating critical information into a single display and allows remote monitoring of vessel systems from multiple locations aboard. The flybridge is equipped with a hardtop for weather protection, stainless steel 316L railings for durability in marine environments, and a countertop with sink for convenience and entertaining. Two 12V and USB outlets on the flybridge console and two additional 12V and USB outlets on the panel provide charging capability for portable electronics and navigation devices.
Salon, Galley, and Interior Spaces
The main salon is accessed from the stern through a tempered glass manual-opening door, creating a defined transition between exterior and interior spaces while maintaining visual continuity. The salon features tempered dark glass windows, reducing solar heat gain while maintaining outboard visibility. A 60-inch LED 4K television serves as an entertainment focal point, while a Fusion APOLLO audio system distributes sound across three interior zones, allowing independent volume and source selection in the salon, flybridge, and cabin areas. The galley is equipped with a 4-burner electric cooktop (220V), a 220V exhaust hood with variable speed control, a 220V microwave oven, and 220V refrigeration units including an ice maker. These electric appliances eliminate the need for propane storage and supply, simplifying fuel management and reducing fire risk. A Corian countertop in the galley and owner's cabin bathroom provides a durable, non-porous surface resistant to staining and bacterial growth. The dinette accommodates dining and casual seating, while mezzanine sofas on the stern deck provide a secondary social space with fabric upholstery and protective covers. An icebox on the fishing deck offers additional beverage and food storage for entertaining or extended cruising. Salon flooring is laminate, selected for ease of cleaning and durability in a marine environment where moisture and salt spray are constant challenges. Climate control is provided by a chiller air conditioning system rated at 72,000 Btu's total capacity, with individual 16,000 Btu evaporators serving the main salon and an additional 9,000 Btu evaporator dedicated to the owner's cabin. This zoned approach allows independent temperature control in different areas of the vessel, accommodating varying comfort preferences among guests and crew. Two 230V electric water heaters ensure hot water availability for galley and head use independent of engine heat.
Accommodations and Cabin Layout
The CAT 62 FD is configured with four guest sleeping areas plus crew quarters, supporting a total of eight to ten persons comfortably. Owner's Cabin features a dedicated ensuite bathroom with a shower stall, cabinet with mirror, Corian countertop, imported 24V electric toilet, and 220V outlets. The cabin itself includes climate control with independent temperature adjustment, reading lights with separate switches, two 220V outlets and two USB outlets, and vinyl flooring. The 9,000 Btu evaporator provides dedicated cooling to this space, ensuring comfort during extended occupancy. VIP Cabin offers a queen-size bed,
Length
64 ft
Beam
26 ft'
Year
2027
Builder
Pro Boat Yachts
Model
CAT 62 FD
Cabins
6
Max speed
20 kn kn
